SPECIFICATIONS

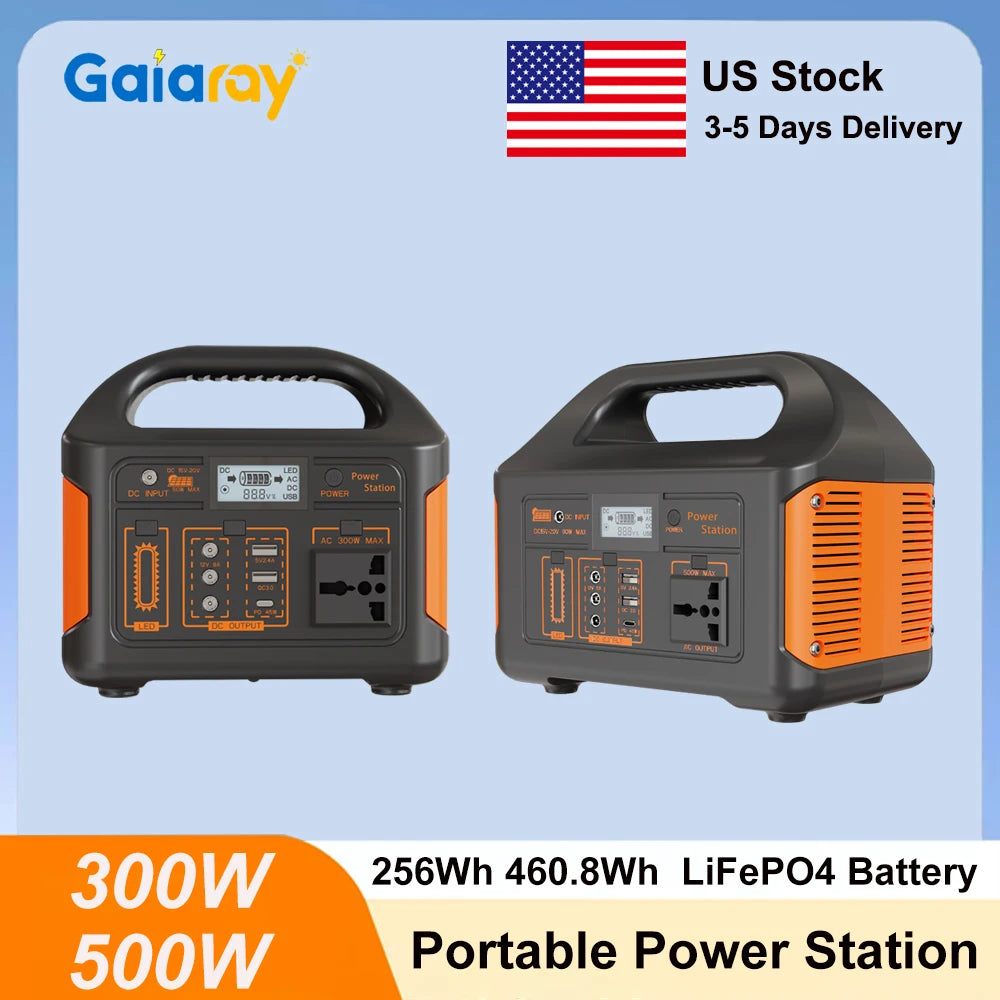

Gaiaray 300W 500W Portable Power Station 110V AC Solar Generator Pure Sine Wave Lifepo4 Battery 256Wh 460.8Wh Power Plant Power Bank UPS With LED Light For Camping Home
300W 500W Power Station:
1. Rated Power：300W/500W
2. Output Waveform: Pure Sine Wave
3. AC Output Voltage: 220V ±5%
4. AC Output Frequency: 50Hz ±0.5Hz
5. Conversion Efficiency: Maximum Value>90%

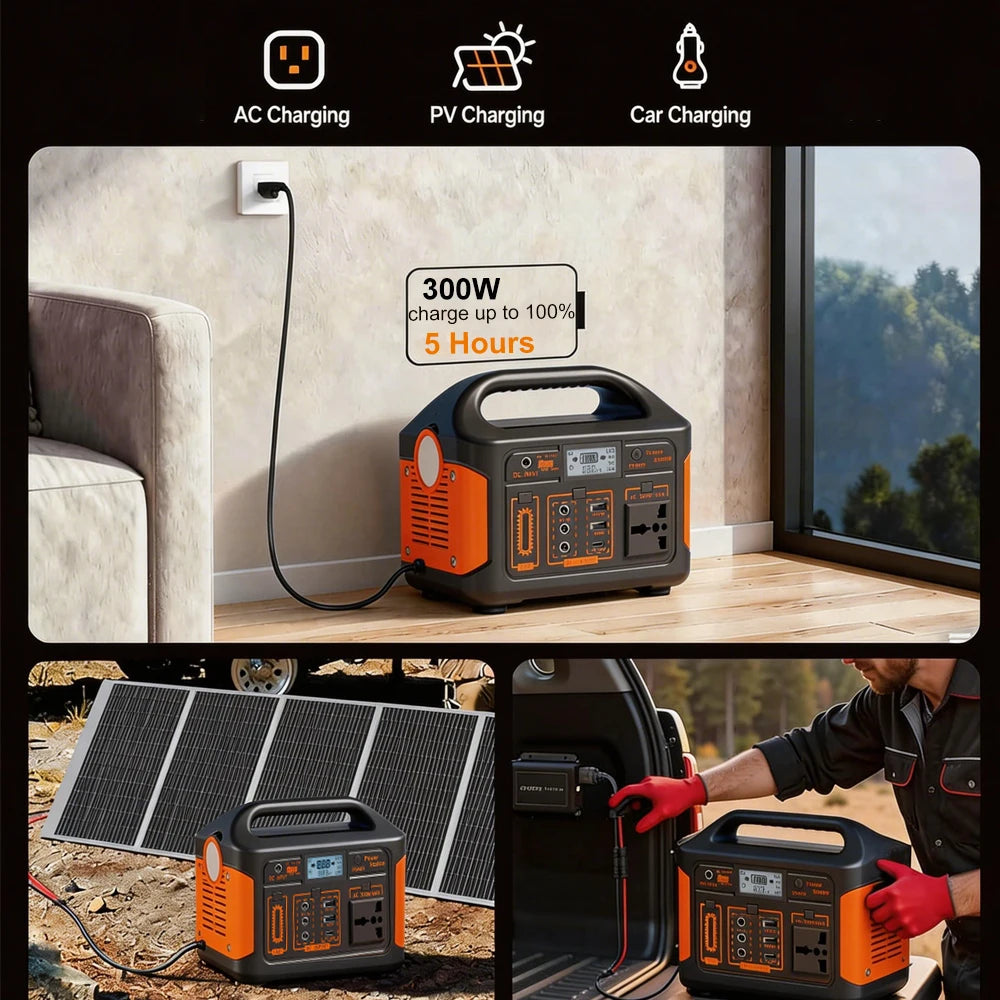

6. Charging Interface: External Charger Port and Solar Panel Charging Port DC5521*1(Built in solar intelligent controller)
7. AC Output Socket: Universal Socket

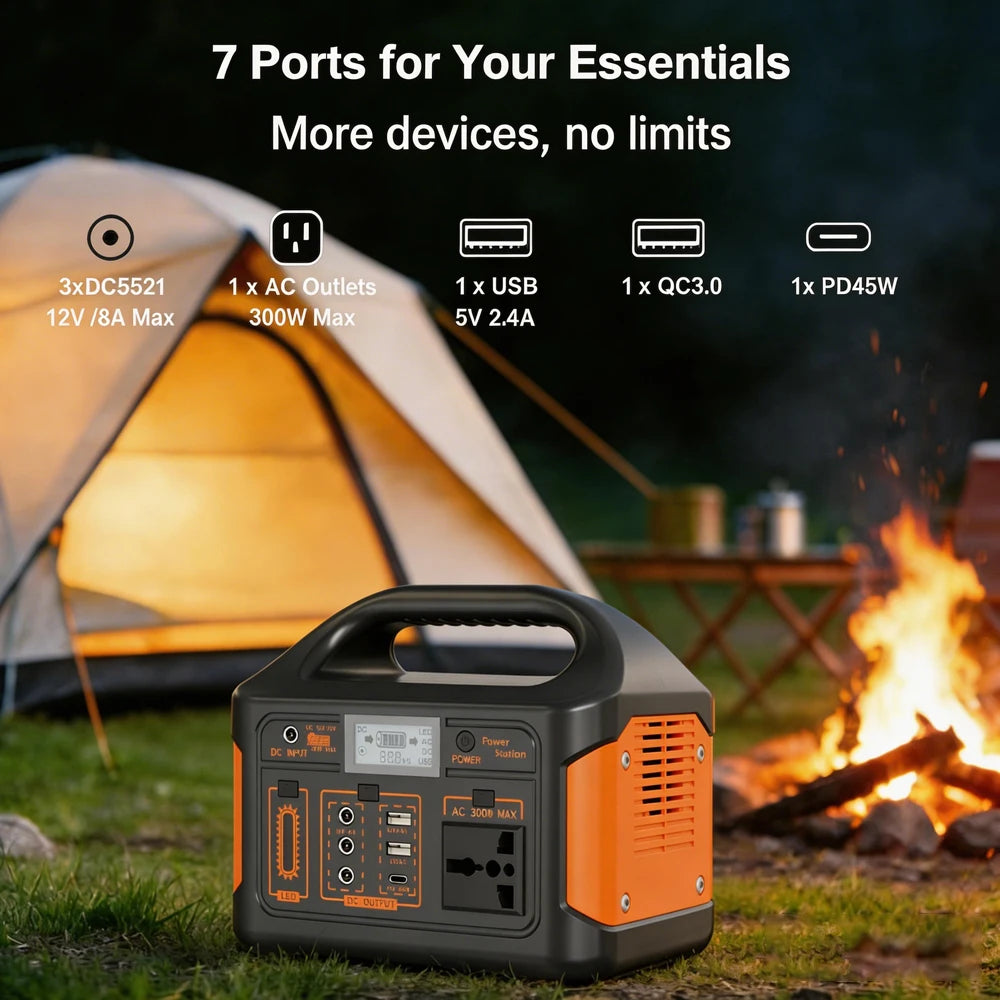

8. DC Output Voltage: USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port；
9. LED Light States：LED high beam, low beam, bright, half-bright, flashing, LED off 6 states
10. Battery Type：LiFePO4
11. Battery Capacity：12.8V 256Wh/460.8W
12. Solar Panel Specifications (optional)：15V-20V Maximum 90W (Optional)
13. Charging Current：6A
14. AC Charger ：16V 5A
15. Charging Time：After full discharge, the battery capacity reaches 80% after 5 hours of charging
16. LCD ：Battery Capacity, Battery Voltage, State of Charge, State of Discharge
17. Heat Dissipation：Intelligent Temperature Control Cooling Fan，
Noise 1 Meter Distance < 45 dB
18. Protection Functions：Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit
|
Rated Power |
300W |
500W |
|
Output Waveform |
Pure Sine Wave |
Pure Sine Wave |
|
AC Output Voltage |
110V ± 15% |
|
|
AC Output Frequency |
60Hz ± 2Hz |
|
|
Conversion Efficiency |
Maximum Value>90% |
|
|
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521 * 1 (Built in solar intelligent controller) |
|
|
AC Output Socket |
Universal Socket |
|
|
DC Output Voltage |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
|
LED Light States |
LED high beam, low beam, high brightness, half light, flashing, LED light off 6 states |
|
|
Battery Type |
LiFePO4 |
|
|
Battery Capacity |

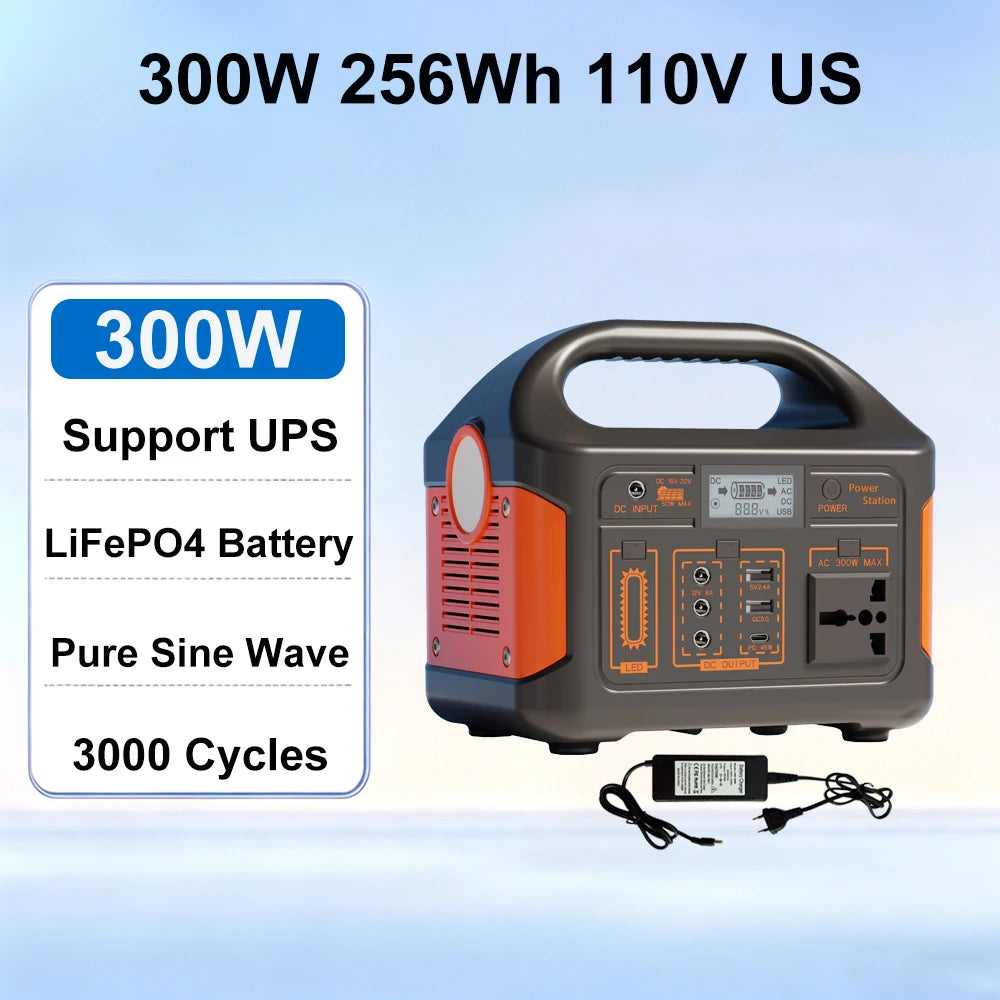

12.8V 256Wh |

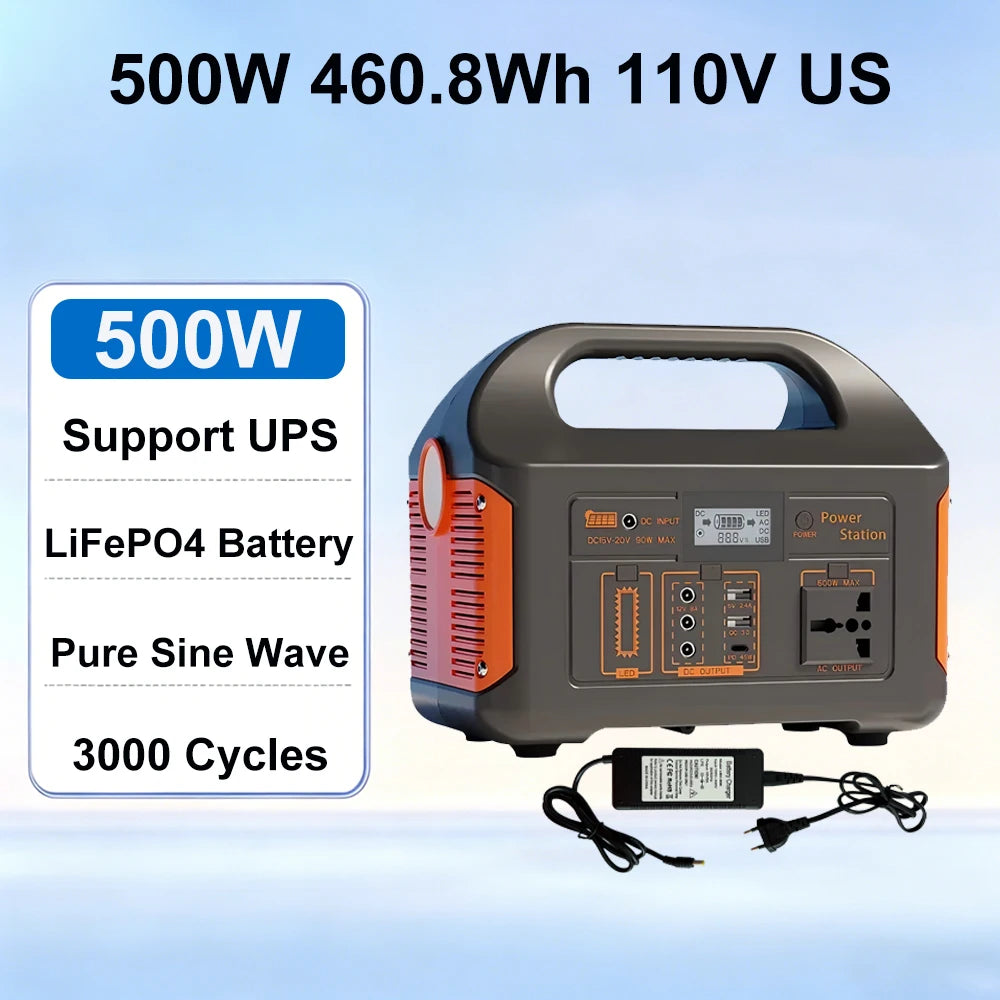

12.8V 460Wh |
|
Solar Panel Specifications |
15V-20V Maximum 50W (Optional) |
15V-20V Maximum 90W (Optional) |
|
Charging Current |
Maximum Value 2.5A |
Maximum Value 6A |
|
AC Charger Specifications |
14.6V 2A |
16V 5A |
|
AC Charger Charging Time |
After full discharge, battery capacity reaches 80% after 5 hours of charging |
|
|
LCD Display |
Battery capacity, battery voltage, charging status, discharge status |
|
|
Heat Dissipation |
Automatic cooling |
|
|
Protective Function |
Low voltage, over voltage, overload, over temperature, over current short circuit |
|
|
Operating Environment Temperature |
-10 ~ 40 ℃ |
|
|
Operating Environment Humility |
10 ~ 85% |
|
|
Storage Environment Humility |
5 ~ 90% |
|
|

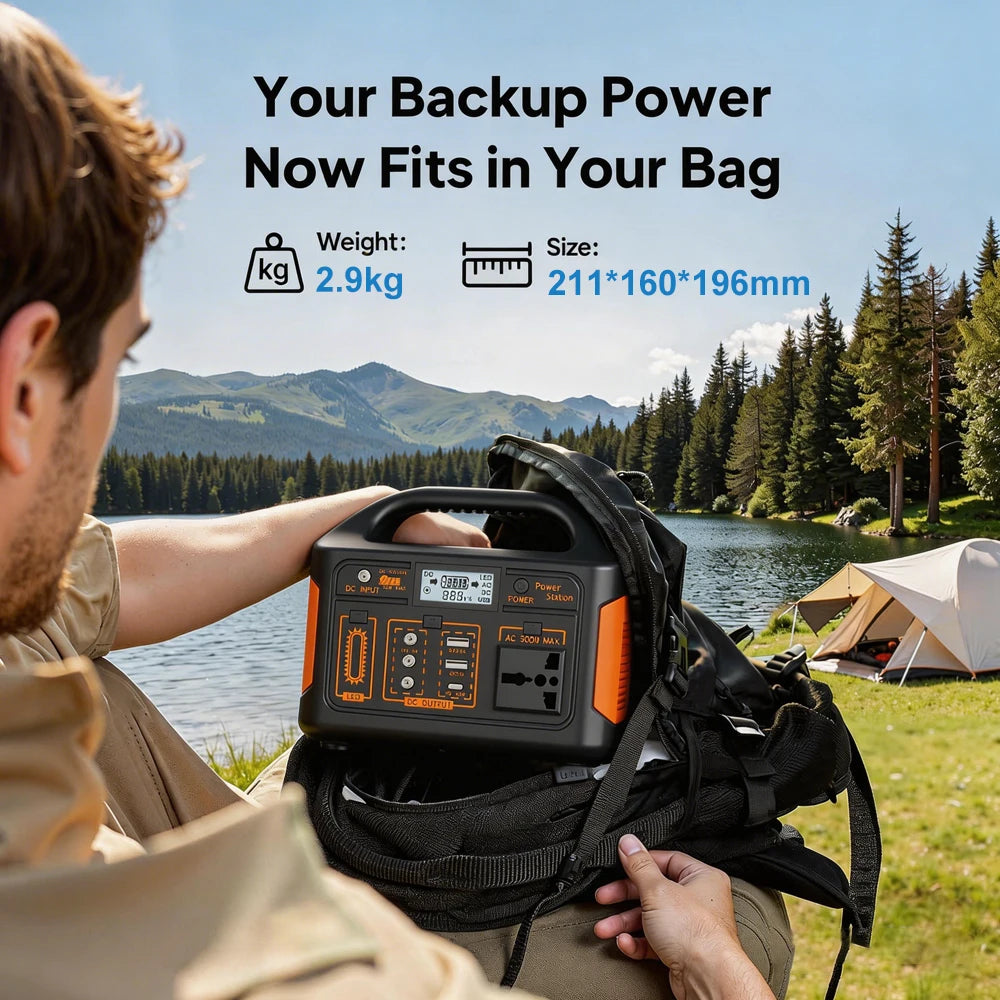

Net Weight(kg) |
≈2.9kg |
≈5.36kg |
|
Product Size D * W * H(mm) |
211*160*196 |
271*172*228 |

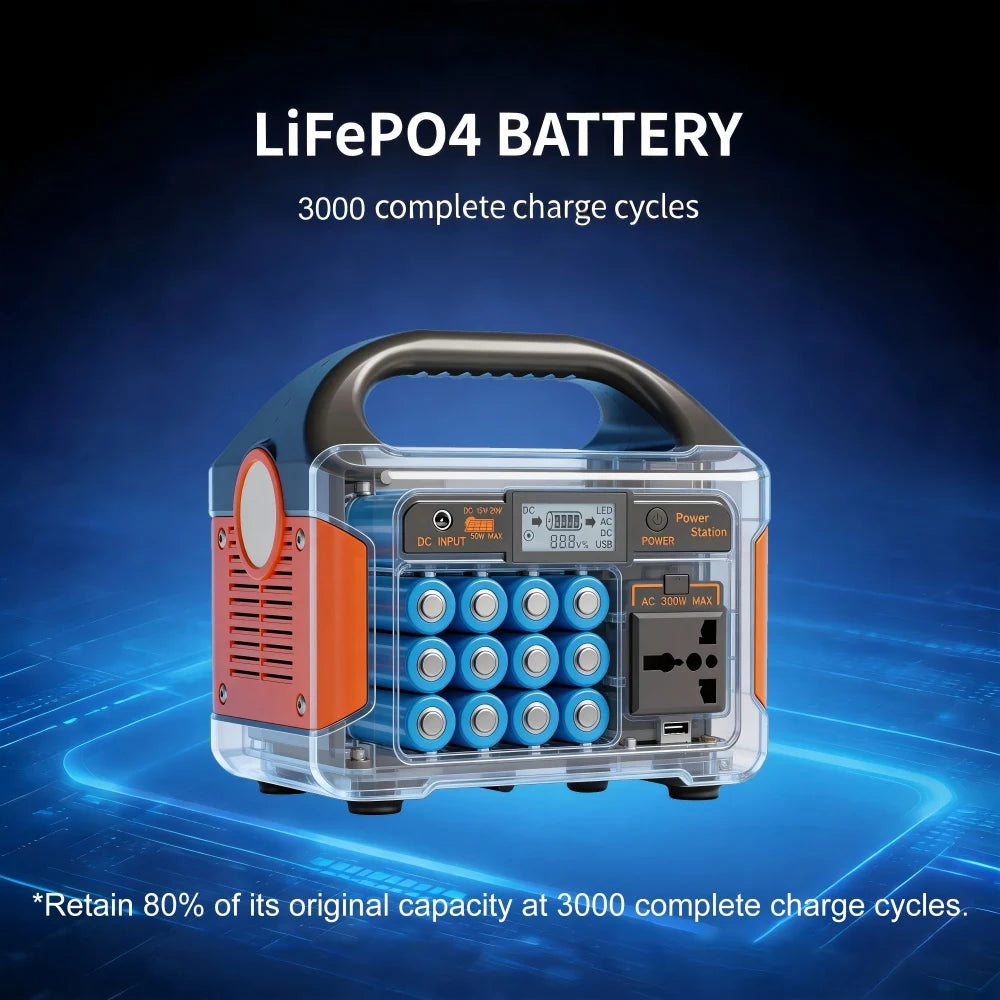

⚡【High-quality LiFePO4 Battery】
This 300W 500W power station is equipped with LiFePO4 batteries, ensuring over 3,000 charge-discharge cycles. The premium battery pack guarantees extended service life and safer operation.
AC Charger: 16V 5A
AC Output Frequency: 60Hz ±0.5Hz
AC Output Socket: Universal Socket
AC Output Voltage: 110V ±5%
Battery Capacity: 12.8V 256Wh/460.8Wh,6A
Battery Type: LiFePO4
Brand Name: GaiaRay
Conversion Efficiency: Maximum Value>90%
DC Output Voltage: USB 5V 2.4A,QC3.0,PD 45W,DC 12V 8A,3xDC5521 Port
Electric: Yes
Feature 1: Portable Power Station
Feature 2: LiFePO4 Charging StationPower Plant
Feature 3: Power Plant
Feature 4: Solar Generator
Feature 5: Power Bank
LCD: Battery Capacity, Battery Voltage, State of Charge, State of Discharge
LED Light States: LED high beam, low beam, bright, half-bright, flashing, LED off 6 states
Material: Plastic
Output Waveform: Pure sine wave
Rated Power: 300W/500W
Type: Power bank
